Bunker Hill Geophysics Survey Identifies Large-Scale, Near-Surface Anomalies to the South of Existing Mine Footprint
HIGHLIGHTS:
- First ever high-resolution model of Induced Polarization (“IP”) geophysical data completed, revealing multiple large-scale, near-surface anomalies matching known responses of historically mined sulfide mineralization
- Rockford Target displays similar lithologic setting to the historical March stope, the single largest producing region of the Bunker Hill Mine, and is located 250’ south of the existing mine footprint
- Government Gulch (“GG”) Target includes several zones, with the largest having a similar scale and orientation to the Quill-Newgard zone, the largest ever continuously mineralized zone identified at the mine
- Shallow nature of target areas (<400 ft depth) allows for low-cost surface drilling from existing roadways
- Significant potential to increase mineralized resource above the water table through further exploration
TORONTO, Jan. 13, 2022 (GLOBE NEWSWIRE) -- Bunker Hill Mining Corporation (the “Company”) (CSE: BNKR; OTCQB: BHLL) is pleased to announce the final results of its ground geophysical program.
Sam Ash, CEO, stated “We are excited to announce the final results of our ground geophysical survey, which indicates that Bunker Hill’s mineral endowment may extend well beyond the historic mine footprint and into the expansive 5,800 acre land package. Our analysis has identified multiple large scale, near-surface zones of potential new mineralization similar to what was historically mined, giving us confidence of possible success in future exploration campaigns.”
The geophysical program, which ended in September of 2021, has now been run through multiple inversion modeling processes to create a high-resolution 3D block model. Previously identified lithologic and structural features are well represented in the data and have allowed for Bunker Hill geologists to further refine geologic models over the program area previously generated from historic mapping programs.
Two key targets have been identified for further exploration: the Rockford Target and Government Gulch Target.

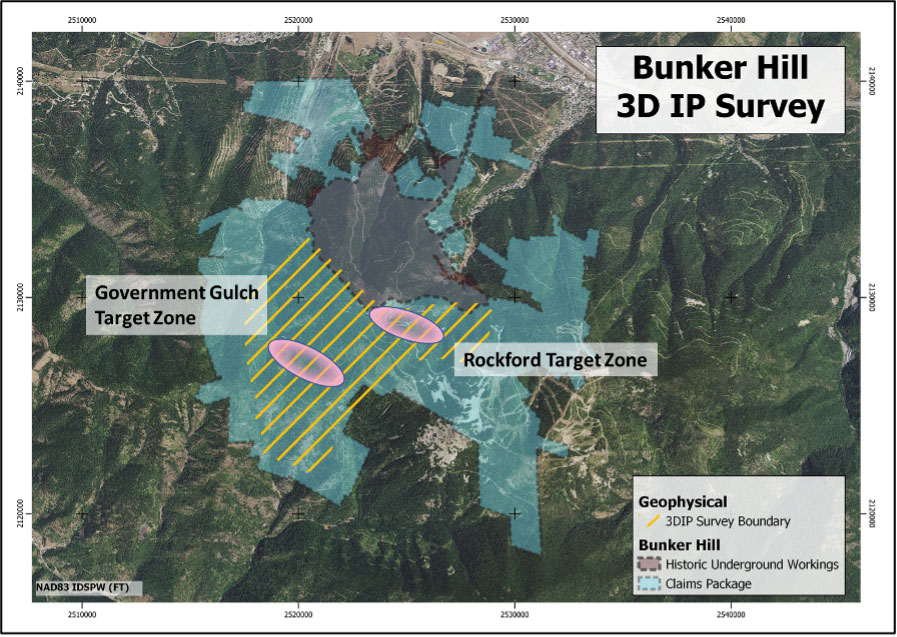

Figure 1: IP Anomalies in Plan-View of Bunker Hill Mine Package

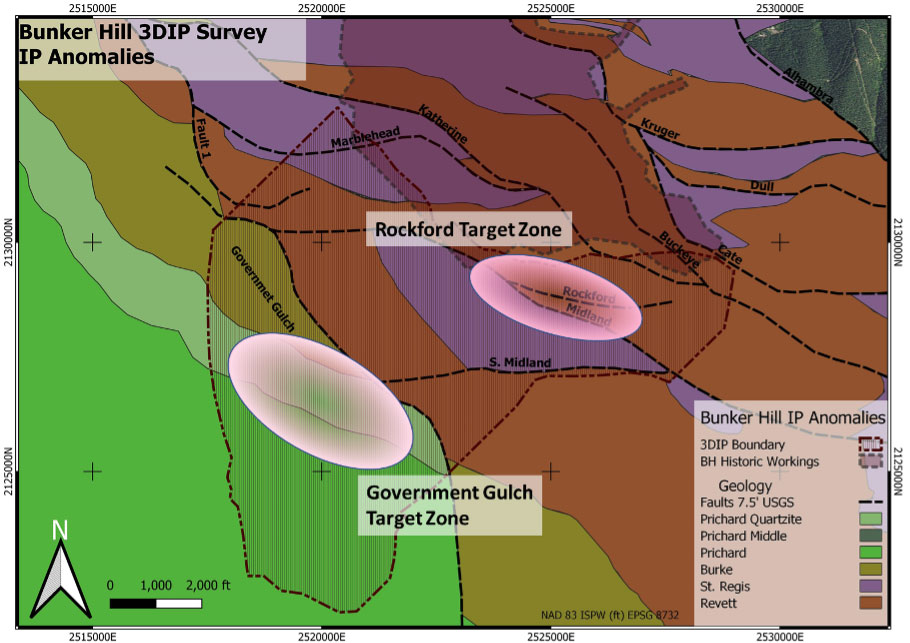

Figure 2: Geologic Map of IP Anomalies,
Mineralization at the Bunker Hill Mine is generally associated with 2 main structural orientations: a WNW strike for Zn-Pb-Ag massive to disseminated mineralization, (known locally as the “Bluebird” style mineralization) and a NE trend for Pb-Ag Quartz-Galena vein mineralization. 3D data collection and processing allowed for the survey to investigate both orientations in the same program. The two key anomalies identified are both tabular in nature and have WNW strikes. This orientation, along with their size and close association to known large-scale fault structures, make them similar to the mineralization identified in Bunker Hill’s current Mineral Resource Estimate, effective November 29, 2021.
The Rockford Target
The Rockford target is hosted at the intersection of the Rockford and Midland faults. Host lithology is the Revett quartzite, here identified by its relatively low IP and high resistivity values. Disseminated pyrite, a dominant feature of the Zn-Pb-Ag mineralization shows an elevated IP response, with a decrease in resistivity. Normal fault wedge-hosted mineralization is known to have existed in multiple locations throughout historic development at Bunker, specifically the March stope which was the single largest producing region of the Bunker Hill mine recording ~4.7Mt of material at 12.03% Pb, 5.22 OPT Ag, and 2.25% Zn. Top of the target zone lies only 150’ from surface, 250’ from the historical mine footprint and is located adjacent to an existing roadway with excellent access for future drill testing.

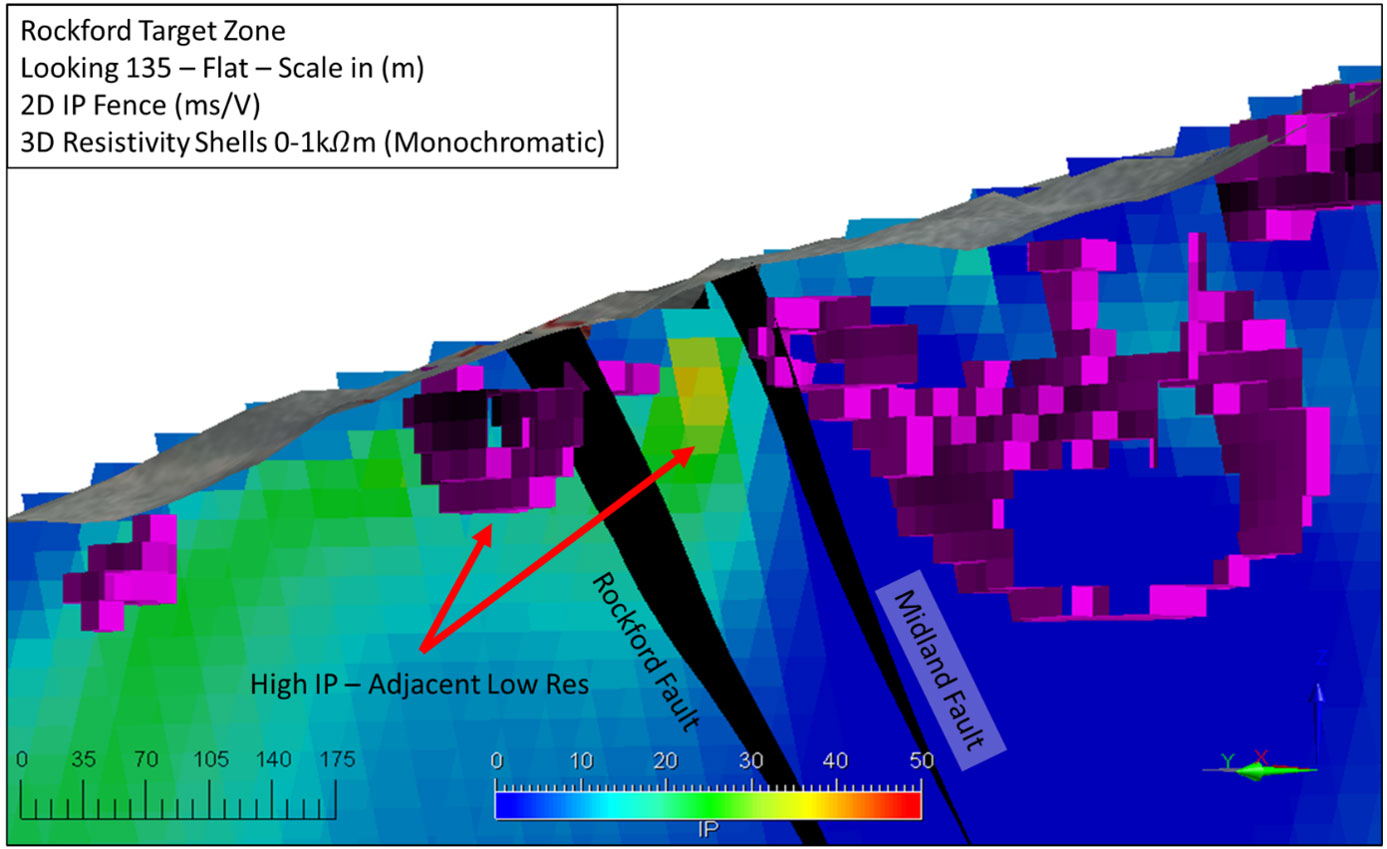

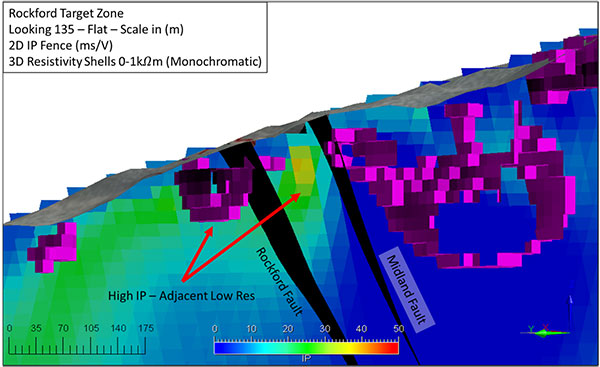

Figure 3: 2D section looking SE at the Rockford target zone. Resistivity anomalies shown in magenta blocks,
A historic down-hole IP geophysical survey on the 21-level of Bunker Hill shows the IP/resistivity characteristics of both massive and finely disseminated sulfide mineralization within Revett rocks to match those of the Rockford target zone.
The Government Gulch (“GG”) Target
The Government Gulch fault brings the deeper Belt series rocks into contact with the Revett quartzites. The GG target zones lie approximately 900’ in the hanging wall of the Government Gulch fault structure and both strike NW with an approximately vertical, slightly NE dip. The tabular nature of the targets shows well defined, along-strike truncation of the combined high IP response with very low resistivity values, separating the target zone from other similar response characteristics of the Prichard thought to identify stratigraphically constrained beds with elevated pyrite content. The larger of the zones measures approximately 1000’ along strike, 250’ wide and 700’ down dip, placing it on the same scale as the largest-ever identified, continuously mineralized zone at Bunker Hill, the Quill-Newgard.

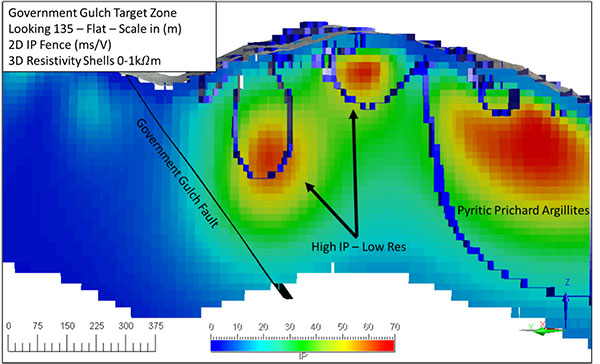

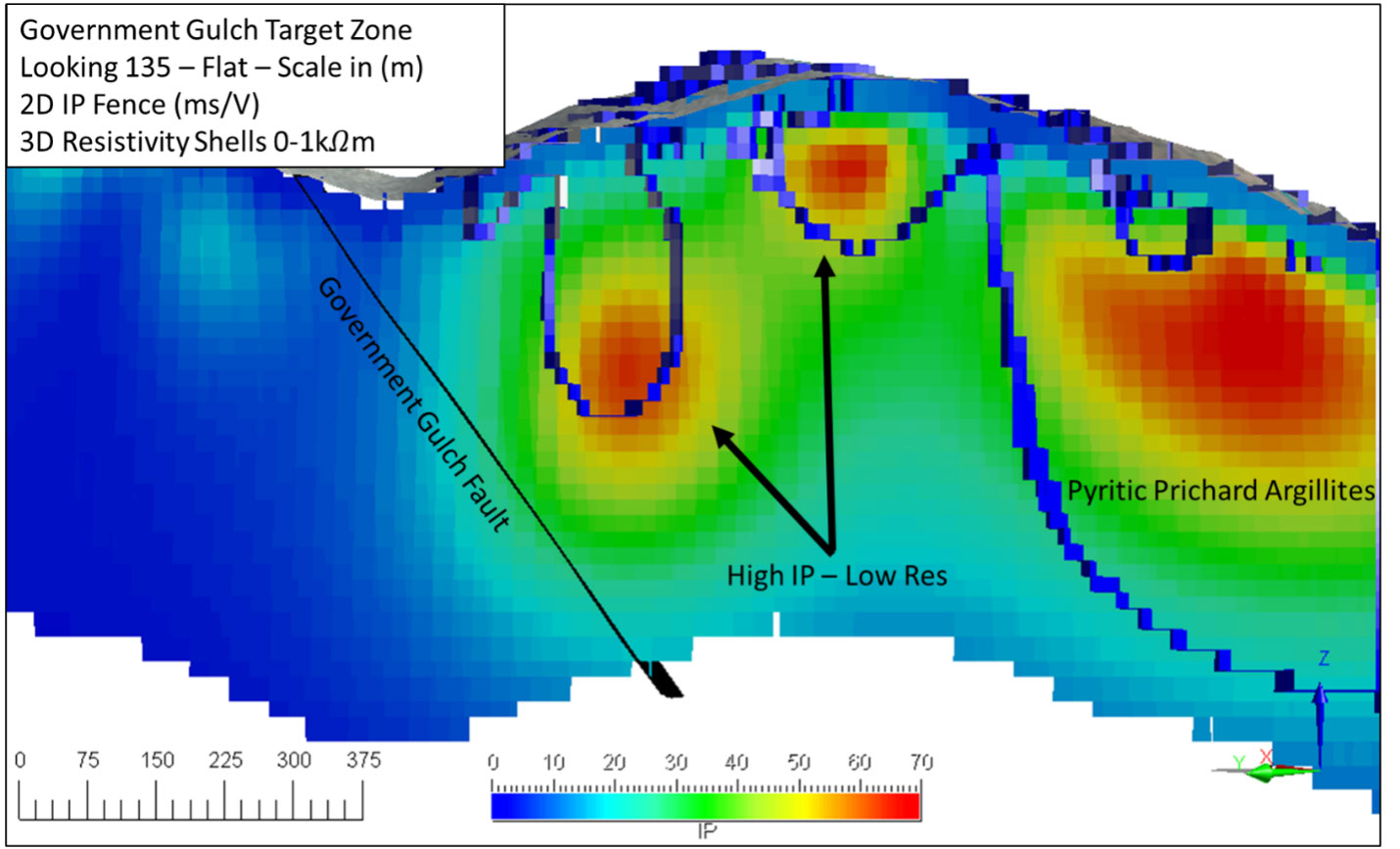

Figure 4: 2D section looking SE at the Government Gulch target zone. Resistivity shells are sliced along the 2D fence plane to show correlation and shown in blue blocks,
The top of the GG target zone lies less than 400’ surface and directly adjacent to the already established road network used for the mobilization of the geophysical program. Bunker Hill is currently developing options to mobilize an exploration program to advance and delineate both the Rockford and GG target zones.
QUALIFIED PERSON
Mr. Scott E. Wilson, CPG, President of Resource Development Associates Inc. and a consultant to the Company, is an independent “Qualified Person” as defined by NI 43-101 and is acting as the Qualified Person for the Company. He has reviewed and approved the technical information summarized in this news release.
The Qualified Person has verified the information disclosed herein, including the sampling, preparation, security and analytical procedures underlying such information, and is not aware of any significant risks and uncertainties that could be expected to affect the reliability or confidence in the information discussed herein.
